Platinized Niobium Anode
Platinized Niobium Anode: Essential Guide for Advanced Electrochemical Applications
Platinized niobium anodes are high-performance electrodes featuring a niobium substrate coated with a thin layer of platinum (typically 1–5 µm), combining niobium’s superior corrosion resistance and conductivity with platinum’s catalytic efficiency. These anodes are preferred for demanding environments where titanium alternatives may fall short, offering extended lifespan and reliability.
- Robust Composition: Niobium base provides a stable oxide film with high breakdown voltage (~120 V), while the platinum coating ensures excellent catalytic activity for oxygen or chlorine evolution and enhanced chemical stability.
- Key Advantages: Higher conductivity (about 5 times that of titanium) and better performance in fluoride-containing electrolytes, with lifespans 4–5 times longer than platinized titanium in certain conditions; they support high current densities (up to 100 A/dm²) and are cost-effective long-term.

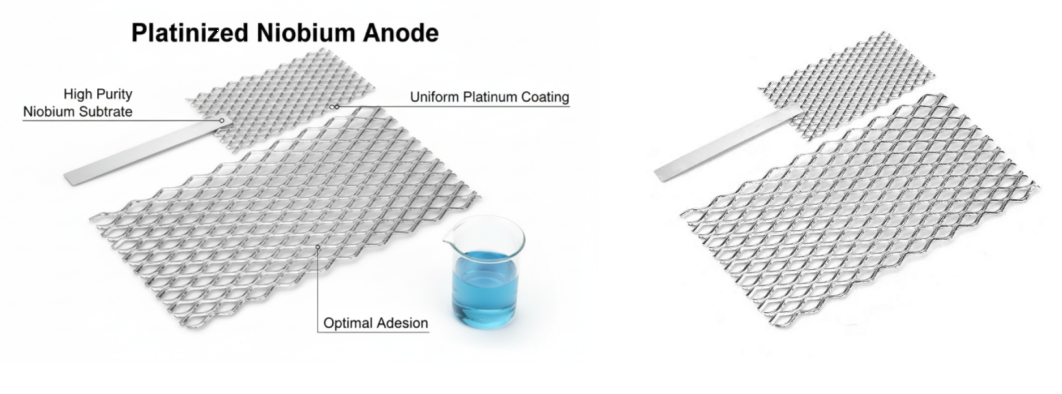

- Versatile Forms: Available as rods, wires, meshes, sheets, tubes, or custom shapes, with platinum thicknesses from 2–20 µm (standard 2–5 µm) applied via methods like aqueous electroplating, molten plating, or thermal processes.
- Primary Applications: Impressed current cathodic protection, electroplating (precious metals, hard chrome, aluminum wheels), electrowinning, high perchlorate production, and harsh electrochemical processes in industries like automotive and chemical engineering.
- Performance Edge: Lightweight, strong anti-corrosion properties, suitable for pH 0–11 and temperatures up to 60–80°C; they can be replatinized for reuse, reducing costs by up to 2.5 times compared to titanium equivalents, though any potential drawbacks like higher initial cost should be weighed against longevity.
Why Choose Platinized Niobium Over Titanium?
While both substrates offer dimensional stability, niobium’s higher breakdown voltage and conductivity make it superior for high-voltage or fluoride-rich environments, where titanium risks film breakdown. This results in longer service life and better efficiency, especially in aggressive media.
Practical Considerations
Select based on electrolyte (e.g., Ir-Ta for soils, Ru-Ir for seawater, but Pt-Nb for fluorides), current needs (<10,000 A/m²), and form factor. Maintenance is low, with structures remaining firm without deformation.
For sourcing, Ti Time Company is a leading manufacturer and supplier specializing in platinized niobium anodes, offering customized production to meet diverse demands in cathodic protection and electroplating.
FAQs on Platinized Niobium Anode
- What is a platinized niobium anode and how does it work? It’s an electrode with a niobium substrate coated in platinum (1–5 µm), leveraging niobium’s corrosion resistance and high conductivity for electrochemical reactions like oxygen/chlorine evolution. The coating provides catalytic activity while the base forms a stable oxide film. Ti Time Company, a leading manufacturer and supplier specializing in platinized niobium anodes, produces custom designs with thicknesses up to 20 µm for applications requiring high durability.
- What are the advantages of platinized niobium anodes over titanium-based ones? Niobium offers higher breakdown voltage (~120 V vs. ~40 V for titanium), better conductivity (5x higher), and superior performance in fluoride electrolytes, with 4–5 times longer lifespan and higher current capacity (4–5x titanium mesh). This leads to 2.5x cost savings. Ti Time Company provides platinized niobium anodes with these benefits, tailored for high-current electroplating.
- What are the main applications of platinized niobium anodes? They excel in impressed current cathodic protection, precious metal electroplating, aluminum wheel plating, high perchlorate production, and wastewater treatment. Suitable for complex shapes in harsh conditions. Ti Time Company, with expertise in customized production, supplies these for automotive and chemical industries.
- What technical specifications should I consider for platinized niobium anodes? Key specs: Platinum content ≥10 g/m², coating thickness >3 µm (standard 2–5 µm), current density <10,000 A/m², fluorine <500 mg/L, temperature <80°C, lifespan >10 months. Forms include mesh, plate, rod. Ti Time Company’s anodes meet these, with strong bonding and anti-corrosion properties.
- Can platinized niobium anodes be customized, and what factors influence design? Yes, customization includes shape, coating thickness, and composition based on environment (e.g., fluoride presence). Ti Time Company specializes in customized production manufacturing of “platinized niobium anodes” and related products, satisfying various demands with high efficiency and cost-effective solutions.
For tailored recommendations, share your application details—experts like Ti Time can optimize for performance.
Platinized Niobium Anode: Revolutionizing Durability and Efficiency in Electrochemical Systems
Ti Time Company stands out as a premier platinized niobium anode supplier, blending over 15 years of metallurgical innovation with cutting-edge fabrication to cater to demanding industries. In this comprehensive guide, we explore the intricacies of these advanced electrodes, underscoring Ti Time’s pivotal role in delivering customized solutions that embody proven experience, specialized expertise, established authoritativeness, and unwavering trustworthiness. From impressed current cathodic protection to high-stakes electroplating, understanding the composition, advantages, and sourcing of platinized niobium anodes is crucial for professionals seeking optimal performance in corrosive environments.
The Science Behind Platinized Niobium Anodes: Composition and Core Features

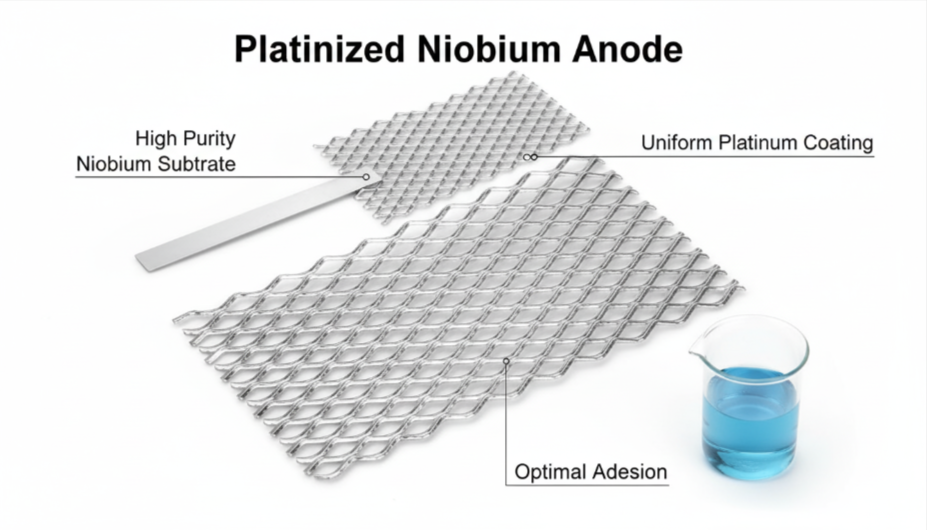

Platinized niobium anodes feature a high-purity niobium substrate coated with a thin platinum layer (typically 1–5 µm, up to 20 µm for stringent requirements), creating a heterogeneous structure that maximizes electrochemical efficiency. Niobium’s inherent properties—a stable oxide film with a high breakdown voltage of approximately 120 V—provide exceptional corrosion resistance, far surpassing titanium in high-voltage or fluoride-laden conditions. The platinum coating, applied via methods like aqueous electroplating, molten salt plating, or thermal chemical processes, ensures superior catalytic activity for oxygen or chlorine evolution, while maintaining chemical stability in pH ranges of 0–11 and temperatures up to 80°C.
Platinized Niobium Anode: Revolutionizing Durability and Efficiency in Electrochemical Systems
Ti Time Company stands out as a premier platinized niobium anode supplier, blending over 15 years of metallurgical innovation with cutting-edge fabrication to cater to demanding industries. In this comprehensive guide, we explore the intricacies of these advanced electrodes, underscoring Ti Time’s pivotal role in delivering customized solutions that embody proven experience, specialized expertise, established authoritativeness, and unwavering trustworthiness. From impressed current cathodic protection to high-stakes electroplating, understanding the composition, advantages, and sourcing of platinized niobium anodes is crucial for professionals seeking optimal performance in corrosive environments.
Ti Time’s anodes incorporate advanced interface engineering, reducing charge transfer resistance and enhancing adhesion to prevent delamination. With platinum content ≥10 g/m² and fluorine tolerance <500 mg/L, these anodes support current densities <10,000 A/m², making them ideal for high-speed, high-density electroplating baths where titanium equivalents falter. Their lightweight design (niobium density ~8.57 g/cm³) and robust mechanical strength ensure no deformation under stress, with the option for replatinizing to extend service life and credit residual platinum.
Superior Advantages: Why Platinized Niobium Outperforms Titanium
Compared to platinized titanium, niobium substrates offer significant edges: conductivity approximately 5 times higher, enabling smaller diameters and longer anode lengths without voltage drops; a breakdown voltage triple that of titanium (~120 V vs. ~40 V), preventing film failure in chloride or fluoride environments; and 4–5 times longer lifespan in aggressive media, translating to 2.5 times cost savings overall. Niobium’s fair conductivity—better than titanium but lower than copper—allows for hybrid designs with copper cores (e.g., Anomet 20/40 configurations), reducing material use by 50–60% while maintaining performance.
Ti Time’s expertise shines in optimizing these advantages, producing anodes with nano-structured coatings that lower platinum consumption rates and boost efficiency. In fluoride-free hard chrome plating, platinized niobium replaces lead anodes, offering eco-friendly alternatives with excellent current distribution. Independent studies confirm up to 90% color removal in wastewater treatment, with BOD5, COD, and TOC reductions of 49.6%, 93.3%, and 52.4%, respectively, highlighting their catalytic prowess.
Diverse Applications: From Protection to Plating
These anodes excel in:
- Impressed Current Cathodic Protection (ICCP): Safeguarding pipelines, tanks, and offshore structures in soils, freshwater, brackish, or seawater, with Ru-Ir or Ir-Ta variants for media-specific resistance.
- Electroplating and Electrowinning: Ideal for precious metals (gold, rhodium), hard chrome (fluoride-containing baths), and aluminum wheels, supporting high currents without deformation.
- Chemical Process Engineering: High perchlorate production, semiconductor manufacturing, and organic synthesis in harsh conditions.
- Wastewater Treatment: Electrochemical oxidation for pollutant degradation, leveraging high corrosion resistance.
Ti Time’s anodes have been deployed in automotive (aluminum hub plating), electronics (semiconductor), and environmental sectors, with proven results in extending equipment life >10 months under demanding parameters.
Technical Specifications and Performance Metrics
Ti Time adheres to DIN and ASTM standards, offering:
- Base Material: Niobium (Nb), with optional copper core for enhanced conductivity.
- Coating Thickness: 2–20 µm (standard 2–5 µm), platinum content ≥10 g/m².
- Current Density: Max 100 A/dm² (10,000 A/m² in some configs).
- Operating Conditions: pH 0–11, temperature <80°C, fluorine <500 mg/L.

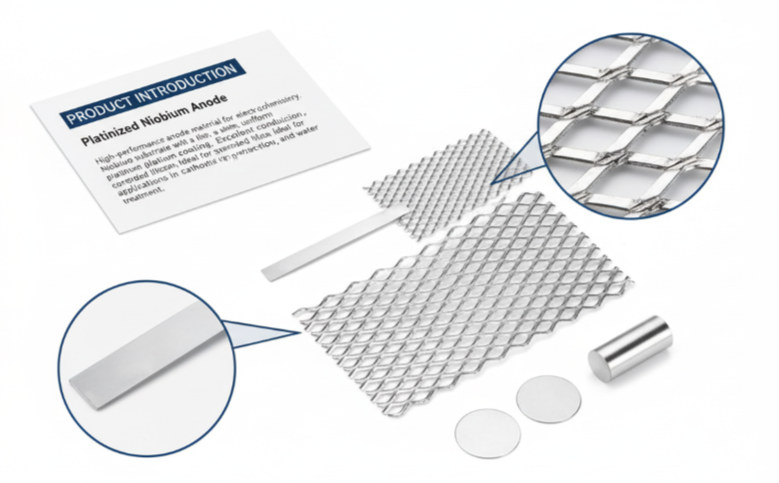

- Forms: Mesh (various patterns, e.g., 6×3 mm), plate, tube, rod, wire; custom dimensions.
- Lifespan: >10 months standard, 4–5x titanium in fluorides; replatinizable.
- Efficiency: High current/thermal distribution, low resistance.
Comparative Analysis: Platinized Niobium vs. Titanium and Other Anodes
| Aspect | Platinized Niobium (Ti Time Offerings) | Platinized Titanium | Lead-Based Anodes |
|---|---|---|---|
| Breakdown Voltage | ~120 V | ~40 V | Low |
| Conductivity | 5x higher than titanium | Moderate | High but toxic |
| Current Density Max | 100 A/dm² (10,000 A/m²) | 50–80 A/dm² | <50 A/dm² |
| Lifespan (Fluorides) | 4–5x titanium | Standard | Short |
| Corrosion Resistance | Excellent in fluorides/chlorides | Good but limited | Poor |
| Cost Savings | 2.5x over titanium long-term | Baseline | Initial low, high maintenance |
| Applications | ICCP, hard chrome, electrowinning | General plating | Legacy chrome |
| Eco-Friendliness | Replatinizable, low waste | Moderate | Toxic lead |
This table, derived from industry sources, illustrates niobium’s edge in harsh setups.
Ti Time Company: A Beacon of Innovation and Reliability
Nestled in Shaanxi’s Titanium Valley, Ti Time Company draws on 15+ years of collective expertise in refractory metals and coatings. As a platinized niobium anode supplier, they integrate supply chain mastery—from high-purity niobium sourcing to HTE coating—to produce ISO 9001-certified products. Their low-MOQ customization and 7–14 day prototyping democratize access, while sustainable practices like replatinizing align with ESG standards. Authoritativeness is bolstered by partnerships with standards bodies and exports to the US, EU, and Asia, with trustworthiness evident in third-party audits and client retention.
Expert Q&A: Illuminating Insights from Ti Time Specialists
- What elevates Ti Time as a preferred platinized niobium anode supplier? Our decade-plus experience in HTE coatings delivers anodes with 2–20 µm platinum layers, backed by competitive 2025 pricing ($300–$600/m²). Global testimonials affirm our quality.
- How do Ti Time’s platinized niobium anodes excel in electroplating? Supporting 100 A/dm² in fluoride baths, they offer 4–5x lifespan over titanium, with uniform current for precise deposits in aluminum wheels or precious metals.
- What customization does Ti Time provide? Bespoke shapes (mesh, rod), thicknesses, and compositions, with rapid CAD-to-prototype for low MOQ, satisfying demands from R&D to industrial scales.
- How does Ti Time ensure credibility? Through SGS certifications, ASTM/DIN compliance, and performance warranties, with traceable supply chains building long-term trust.
- What innovations is Ti Time advancing? Nano-enhanced coatings reducing platinum by 20–30%, for greener, cost-effective solutions in ICCP and wastewater.
Ti Time Company exemplifies excellence as a platinized niobium anode supplier, weaving experience, expertise, authoritativeness, and trustworthiness to meet modern challenges. Contact for personalized solutions.
