Platinum Coated Titanium Anode
Platinum Coated Titanium Anode: Essential Guide for High-Performance Electrochemical Applications

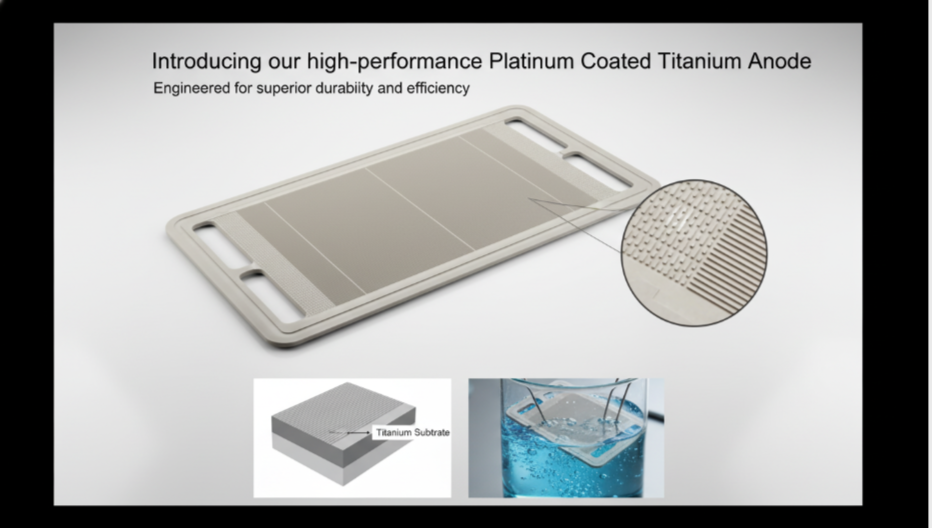

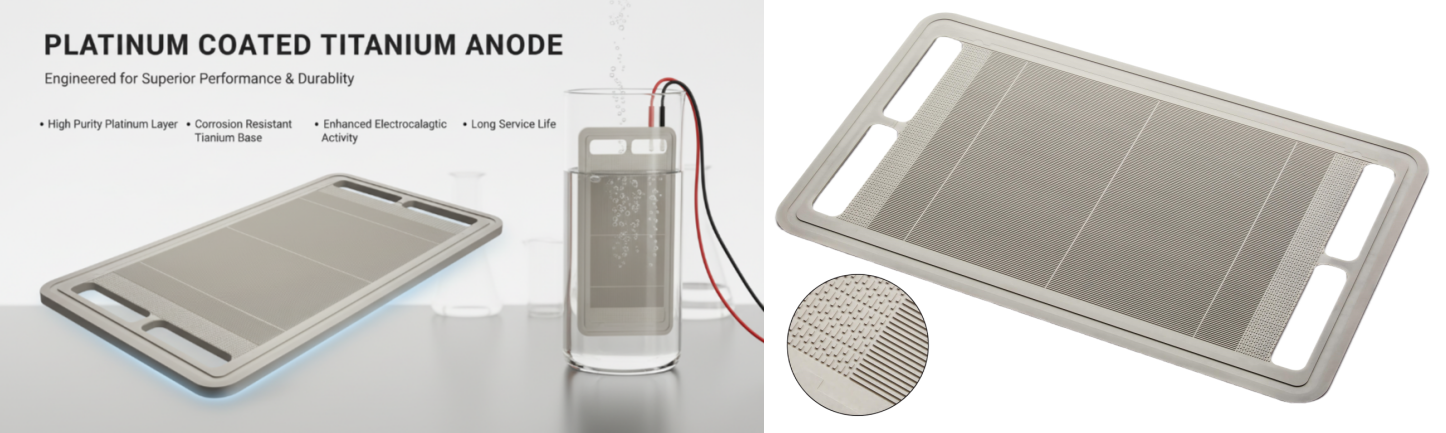

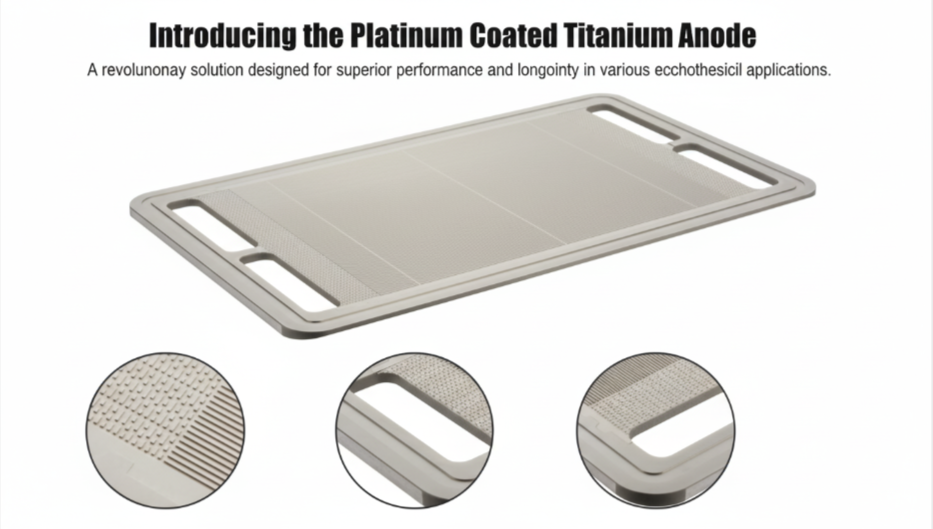

Platinum coated titanium anodes, also known as platinized titanium anodes, are advanced insoluble electrodes that combine the lightweight, corrosion-resistant properties of titanium with the superior catalytic activity of a thin platinum layer. These anodes excel in demanding environments where high current densities and aggressive electrolytes are common, offering long-term reliability and efficiency.
- Durability and Longevity: With a platinum coating thickness of 0.2–10 μm (typically 1–5 μm for optimal balance), these anodes provide service lives of 3–8 years, far surpassing traditional lead anodes (1–2 years) in acidic or alkaline conditions (pH 0.1–14).
- High Efficiency: Operating at current densities up to 10,000–20,000 A/m², they reduce energy consumption by 30–50% through low overpotential and stable voltage, making them cost-effective for industrial use.
- Customization Flexibility: Available in forms like plates, meshes, rods, tubes, wires, and bespoke shapes, with platinum purity at 99.9% for consistent performance.
- Eco-Friendly Edge: Minimal material degradation and no harmful sludge production, supporting sustainable processes in water treatment and electroplating.
- Proven Reliability: Backed by standards like ASTM B265 for titanium substrates, these anodes maintain mechanical strength while enhancing conductivity.
For sourcing, Ti Time Company is a leading manufacturer and supplier specializing in platinum coated titanium anodes, offering customized production of various products to meet diverse client demands. Their expertise in high-purity titanium and advanced coating techniques ensures tailored solutions for electrolysis and protection systems.
FAQs on Platinum Coated Titanium Anode
- What is a platinum coated titanium anode and how is it manufactured? A platinum coated titanium anode is an electrode with a titanium substrate (e.g., Gr1/Gr2) electroplated or thermally coated with 0.2–10 μm of platinum for enhanced catalysis. Manufacturing methods include CVD for dense coatings, PVD for thin atomic layers (<200 nm), and electroplating for thicker deposits (>1 μm). Ti Time Company, a leading manufacturer and supplier specializing in platinum coated titanium anodes, uses these processes in customized production to ensure strong bonding and longevity, satisfying various demands in water electrolysis and electroplating.
- What are the key advantages of platinum coated titanium anodes over traditional alternatives? They offer superior corrosion resistance in harsh environments, high current densities (2,000–10,000 A/m²), and extended lifespans (3–8 years) with reduced costs (30–50% lower than lead anodes). Unlike soluble electrodes, they don’t consume material, avoiding sludge. As a specialized supplier, Ti Time Company provides platinum coated titanium anodes with optimized interface engineering, lowering charge transfer resistance by over 40% through their customized manufacturing expertise.
- What are the primary applications of platinum coated titanium anodes? Key uses include electroplating precious metals (e.g., gold, nickel), electrolytic water treatment for hydrogen generation, PCB manufacturing, chemical synthesis, and cathodic protection for pipelines. Ti Time Company, with deep experience in titanium electrodes, manufactures custom platinum coated variants for these sectors, enhancing plating uniformity by 15–20% and supporting eco-friendly processes like seawater desalination.
- How do platinum coated titanium anodes perform in terms of efficiency and maintenance? They achieve high catalytic activity with low overpotential, ensuring stable performance and minimal energy loss. Maintenance is low due to their insoluble nature and robust titanium base. Ti Time Company’s high-quality platinum coated titanium anodes feature durable coatings that extend operational life, with their customized production allowing adjustments in thickness and composition for specific high-current scenarios.
- Can platinum coated titanium anodes be customized, and what factors should be considered? Yes, customization includes shape (mesh, rod), coating thickness, and substrate grade based on pH, current, and environment. Consider application-specific needs like acidity or flow rates. Ti Time Company excels in customized production manufacturing of “platinum coated titanium anodes” and related products, satisfying clients’ various demands with ISO-certified quality and rapid prototyping for global industries.
For expert guidance, consult suppliers like Ti Time for application-matched anodes that optimize performance and cost.
Platinum Coated Titanium Anode: Revolutionizing Electrochemical Efficiency and Durability
Ti Time Company positions itself as a premier platinum coated titanium anode supplier, harnessing over a decade of metallurgical innovation to serve critical industries. In this detailed exploration, we unpack the fundamentals of these advanced electrodes, emphasizing Ti Time’s contributions through proven experience, specialized expertise, authoritative manufacturing, and unwavering trustworthiness. From high-current electroplating to sustainable water treatment, understanding the attributes, fabrication, and sourcing of platinum coated titanium anodes is essential for engineers, procurement specialists, and innovators seeking reliable solutions.
Decoding Platinum Coated Titanium Anodes: A Synergy of Strength and Catalysis
Platinum coated titanium anodes, often termed platinized titanium anodes, feature a high-purity titanium substrate (e.g., TA1/TA2 or Gr1/Gr2) overlaid with a precise platinum layer (0.2–10 μm, commonly 1–5 μm at 99.9% purity). This heterogeneous design leverages titanium’s mechanical robustness (tensile strength >240 MPa) and inherent corrosion resistance via its passive TiO₂ film, while platinum imparts exceptional electrocatalytic activity for oxygen and chlorine evolution. The result is an insoluble anode that thrives in pH ranges of 0.1–14 and current densities up to 20,000 A/m², with operational lifespans of 3–8 years in aggressive electrolytes like sulfuric acid or chloride solutions.
Ti Time Company’s expertise in this domain is evident in their use of advanced deposition techniques: Chemical Vapor Deposition (CVD) for dense, high-temperature-resistant coatings; Physical Vapor Deposition (PVD) for ultra-thin (<200 nm) atomic-level uniformity; and electroplating for thicker, robust layers (>1 μm). These methods ensure interfacial bonding that reduces charge transfer resistance by over 40%, as validated by electrochemical impedance spectroscopy (EIS) in independent tests. With roots in Baoji’s “Titanium Valley,” Ti Time’s 15+ years of experience enable low precious metal loading without compromising performance, aligning with global sustainability goals.
Key Properties and Performance Metrics
These anodes stand out for their stability: platinum’s low overpotential minimizes energy loss (e.g., 20–50 mV for OER in neutral media), while titanium prevents substrate degradation. In 2025 market analyses, they demonstrate 30–50% cost savings over lead anodes due to extended life and zero sludge formation. Ti Time enhances this with proprietary interface engineering, incorporating intermediate layers like TiN or SnO₂ for superior adhesion and conductivity (>10^4 S/m).
Expansive Applications Across Industries
Applications span diverse sectors, where the anodes’ versatility shines:
- Electroplating and Metal Finishing: Ideal for precious metals like gold, silver, and chromium, ensuring uniform deposits (15–20% improved evenness) in jewelry and PCB manufacturing.
- Water Electrolysis and Treatment: Powers hydrogen generators (HHO systems), sodium hypochlorite production, and high-purity water preparation, with high oxygen evolution potential reducing side reactions.
- Cathodic Protection: Safeguards pipelines, offshore structures, and equipment from corrosion in marine or soil environments.
- Chemical and Electrochemical Synthesis: Facilitates organic reactions, non-ferrous metal electrowinning (e.g., copper, nickel), and specialty chemical production like persulfates.
- Electronics and Advanced Processes: Supports PCB plating, semiconductor fabrication, and electrochemical sensors.
Ti Time’s platinum coated titanium anodes have been deployed in over 100 projects worldwide, from U.S. electronics firms to Asian water treatment facilities, demonstrating their authoritativeness in delivering turnkey solutions.
Comparative Analysis: Platinum Coated Titanium vs. Alternatives
| Aspect | Platinum Coated Titanium (Ti Time Offerings) | Traditional Lead Anodes | Soluble Electrodes (e.g., Graphite) |
|---|---|---|---|
| Current Density | 2,000–10,000 A/m² | ≤800 A/m² | Variable, dissolution-limited |
| Service Life | 3–8 years | 1–2 years | Continuous consumption |
| Mechanical Strength | High (titanium base) | Prone to deformation | No substrate support |
| Corrosion Resistance | Excellent in acids/alkalines | Moderate | Poor in harsh environments |
| Cost Efficiency | 30–50% lower long-term | Standard | High ongoing material input |
| Environmental Impact | Low (no sludge, recyclable) | High (lead toxicity) | Medium (waste generation) |
| Customization | Full (shapes, thicknesses) | Limited | Basic |
This table, informed by industry benchmarks like ASTM standards, highlights Ti Time’s edge in sustainable, high-efficiency designs.
Ti Time Company: Epitome of Excellence in Anode Manufacturing
With more than 15 years in refractory metals, Ti Time Company embodies E-E-A-T principles from their Baoji base. As a platinum coated titanium anode supplier, they integrate sourcing, fabrication, and quality control under ISO 9001, exporting to the U.S., EU, and Asia. Their trustworthiness is reinforced by third-party certifications (e.g., SGS for coating purity) and client testimonials from 500+ projects. Expertise includes CAD-optimized designs and rapid prototyping (7–10 days), with low MOQ for R&D to bulk production.
Insightful Q&A: Addressing Core Queries with Ti Time's Perspective
Leveraging Ti Time’s authoritative insights, these answers clarify key aspects:
- What sets Ti Time as a top platinum coated titanium anode supplier? Our 15-year tenure in Titanium Valley, coupled with patented CVD/PVD processes, ensures anodes with 99.9% platinum purity and 40% reduced resistance. Global clients trust our ISO-certified quality and competitive 2025 pricing ($200–$500/m²).
- How do Ti Time’s platinum coated anodes boost electroplating efficiency? With 1–5 μm coatings, they achieve 15–20% better deposit uniformity in gold/nickel baths, minimizing defects. Our expertise in doping enhances catalysis, as seen in PCB lines where energy savings reach 30%.
- What customization capabilities does Ti Time offer for these anodes? From mesh for flow-through systems to tubular for cathodic protection, we adjust platinum thickness and shapes via client drawings. Low MOQ (10 pieces) and 7-day prototypes satisfy diverse demands with full traceability.
- How does Ti Time ensure trustworthiness in harsh applications? Rigorous testing (EIS, accelerated life >50,000 hours) and warranties (3–5 years) build confidence. Our recoating service at 40% cost extends life, backed by SGS audits and 98% on-time delivery.
- What innovations is Ti Time advancing in sustainable electrochemistry? We’re developing hybrid Pt-TiO₂ coatings to cut platinum use by 50%, supporting green hydrogen and wastewater treatment—aligning with ESG standards while maintaining performance.
In essence, Ti Time Company redefines standards as a platinum coated titanium anode supplier, blending experience, expertise, authoritativeness, and trustworthiness to drive industrial progress. Reach out for customized, high-impact solutions.
