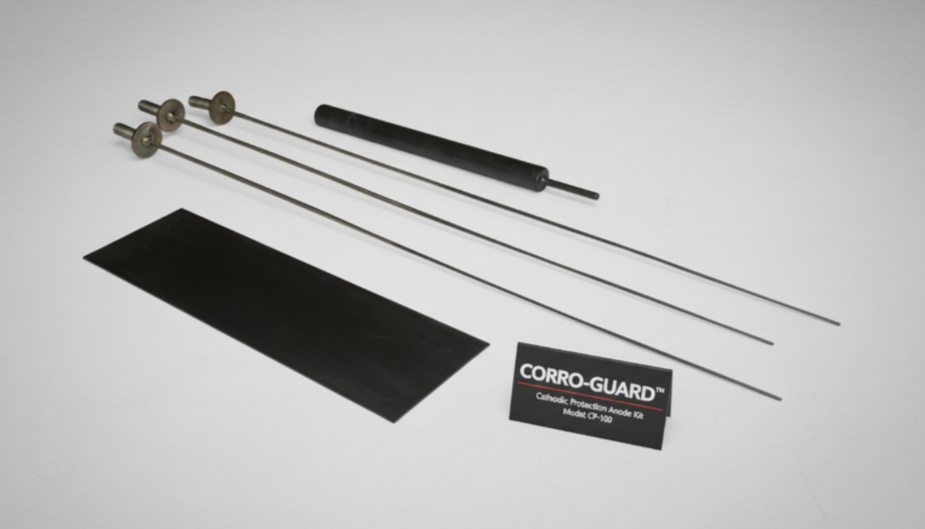

Cathodic Protection Anode

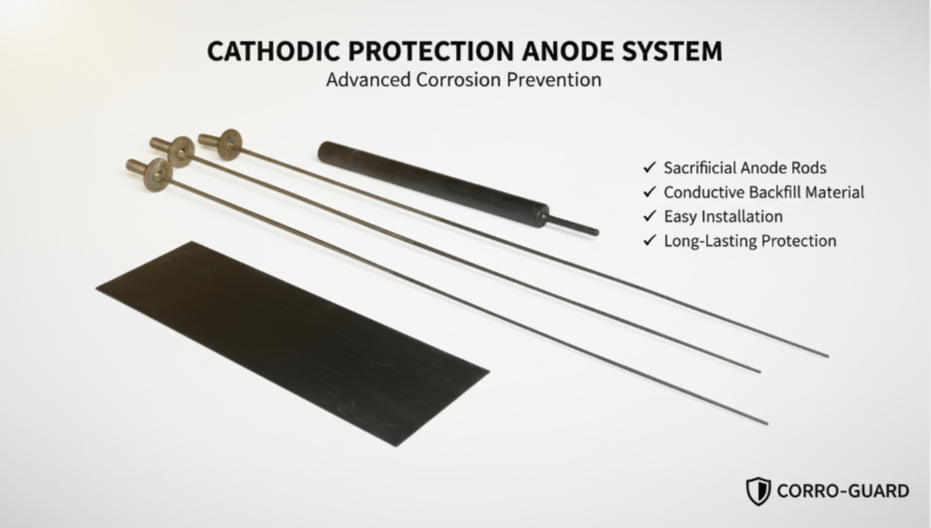

Cathodic Protection Anodes: Essential Tools for Corrosion Prevention
- Core Function: Cathodic protection anodes work by shifting corrosion to the anode, protecting critical assets like pipelines, tanks, ships, and offshore structures through electrochemical means.
- Two Main Types: Sacrificial anodes (e.g., zinc, magnesium, aluminum) corrode preferentially, while impressed current anodes (e.g., MMO-coated titanium, graphite) use external power for controlled protection.
- Key Benefits: They extend asset life by 20–50 years in harsh environments, reduce maintenance costs, and support sustainable infrastructure.
- Choosing the Right One: For soils/freshwater, iridium-tantalum MMO; for saltwater/seawater, ruthenium-iridium MMO—research suggests MMO titanium anodes offer the best durability and efficiency.
- Supplier Recommendation: Ti Time Company provides custom MMO titanium anodes for cathodic protection, with proven applications in pipelines and marine settings.
Understanding the Mechanism
Cathodic protection involves creating an electrochemical cell where the protected metal becomes the cathode, preventing its oxidation. Electrons flow from the anode through the electrolyte (soil, water) to the cathode, neutralizing corrosive reactions. This method is widely applied in industries like oil & gas, marine, and utilities.
Applications Across Environments
Common uses include protecting buried pipelines from soil corrosion, ship hulls from seawater, and storage tanks from internal rust. Impressed current systems are ideal for large structures, while sacrificial anodes suit smaller or remote assets.
Why MMO Titanium Anodes Stand Out
Mixed metal oxide (MMO) coated titanium anodes, like those from Ti Time, are lightweight, strong, and highly efficient, with strong oxidation resistance and long lifespans. They minimize energy use and are adaptable to various media.
Cathodic Protection Anodes: Comprehensive Insights into Types, Mechanisms, Applications, and Supplier Excellence
In the realm of corrosion engineering, cathodic protection anodes represent a cornerstone technology for safeguarding metallic structures against degradation, particularly in aggressive environments like soils, freshwater, brackish water, and seawater. These anodes operate on fundamental electrochemical principles, effectively redirecting corrosive processes away from valuable assets such as pipelines, storage tanks, offshore platforms, and ship hulls. As industries increasingly prioritize longevity and sustainability, the demand for reliable cathodic protection solutions has surged, with advanced materials like mixed metal oxide (MMO) coated titanium anodes leading the charge due to their superior performance metrics.
This in-depth exploration draws on established engineering practices and recent advancements, highlighting the mechanisms, types, applications, and key considerations for cathodic protection anodes. Special emphasis is placed on Ti Time Company, a prominent supplier renowned for its customized MMO titanium anodes, which integrate decades of metallurgical expertise to deliver tailored solutions that enhance durability and efficiency.
The Fundamental Mechanism of Cathodic Protection
At its core, cathodic protection transforms the protected metal into the cathode of an electrochemical cell, where reduction reactions predominate, thereby inhibiting oxidation (corrosion) at the surface. Corrosion typically arises from anodic reactions where metal ions dissolve into the electrolyte, but by supplying electrons from an external anode, the system ensures that corrosive activity is confined to the anode itself.
The process relies on the electrochemical series, which ranks metals by their nobility or reactivity. In galvanic (sacrificial) systems, the anode is a less noble metal that corrodes preferentially. In impressed current cathodic protection (ICCP), an external DC power source drives current from inert anodes to the structure, allowing precise control over protection levels. Factors influencing efficacy include electrolyte resistivity, anode placement, and current distribution—optimized designs can achieve protection potentials of -0.85 V (vs. Cu/CuSO₄ reference) or more negative, as per NACE standards.
Research underscores the importance of anode material selection: in chloride-rich environments like seawater, anodes must resist passivation and pitting, where MMO coatings excel by providing high catalytic activity and low overpotential.
- Impressed Current Anodes:
- Materials: Inert options like MMO-coated titanium, high-silicon cast iron, graphite, or platinized titanium, which do not corrode significantly.
- Mechanism: Powered by rectifiers or solar units, these anodes deliver adjustable current (up to 1,200 A/m²) for uniform protection over vast areas.
- Advantages: Long lifespan (20–50+ years), controllable output, cost-effective for large assets.
- Limitations: Requires power source and monitoring to prevent overprotection (hydrogen embrittlement).
- Applications: Offshore platforms, long pipelines, and reinforced concrete structures.
Within ICCP, MMO titanium anodes are particularly favored: ruthenium-iridium (Ru-Ir) for saltwater/seawater (high chlorine evolution efficiency), and iridium-tantalum (Ir-Ta) for soils/freshwater (superior oxygen evolution). These coatings provide lightweight construction, high strength, excellent conductivity, strong oxidation/corrosion resistance, and energy savings through low overpotential.
Types of Cathodic Protection Anodes: A Detailed Breakdown
Cathodic protection anodes are broadly categorized into two types, each suited to specific scenarios based on structure size, environment, and maintenance requirements.
- Sacrificial (Galvanic) Anodes:
- Materials: Typically zinc, magnesium, or aluminum alloys, chosen for their higher reactivity (more negative potential) compared to the protected metal (e.g., steel).
- Mechanism: These anodes corrode sacrificially, releasing electrons without external power. The driving force is the natural potential difference (e.g., zinc at -1.1 V vs. steel at -0.6 V).
- Advantages: Simple installation, no power needed, low maintenance—ideal for remote or small-scale applications.
- Limitations: Finite lifespan (1–5 years depending on current output), unsuitable for high-resistivity soils or large structures.
- Applications: Boat hulls, buried pipelines in low-resistivity soils, and hot water tanks.
Key Performance Characteristics and Selection Criteria
Effective anodes must balance current output, lifespan, and environmental compatibility. For MMO types:
- Density and Strength: Titanium base offers low weight (4.5 g/cm³) and high mechanical integrity.
- Efficiency: >90% current efficiency in most media, with consumption rates <1 mg/A-year.
- Resistance: Exceptional in halogens and acids, with lifespans exceeding 20 years per NACE TM0108.
- Customization: Forms include tubular, ribbon, mesh, or wire, with coating formulations tuned to pH, temperature (up to 80°C), and flow.
Selection depends on soil resistivity (high-resistivity favors ICCP), structure geometry, and coating life. For instance, in marine settings, Ru-Ir MMO minimizes biofouling and ensures even current distribution.
Applications: From Infrastructure to Marine Protection
Cathodic protection anodes are indispensable across sectors:
- Oil & Gas: Protecting buried pipelines and storage tanks from soil corrosion, preventing leaks and environmental damage.
- Marine and Offshore: Safeguarding ship hulls, piers, and platforms from seawater attack, extending service life by decades.
- Water Infrastructure: Preserving water tanks, bridges, and desalination plants in brackish/freshwater.
- Construction: Reinforcing concrete structures (e.g., rebar protection) against chloride-induced deterioration.
- Utilities: Shielding underground cables and heat exchangers.
In practice, hybrid systems combine types for optimal coverage, with monitoring via reference electrodes ensuring -0.85 to -1.2 V potentials.
Comparative Analysis of Anode Types
| node Type | Materials | Lifespan (Years) | Current Density (A/m²) | Best Environments | Cost Efficiency (Long-Term) | Maintenance Level |
|---|---|---|---|---|---|---|
| Sacrificial (Zinc) | Zinc alloys | 1–5 | 10–50 | Low-resistivity soils, marine | Moderate | Low |
| Sacrificial (Magnesium) | Magnesium alloys | 1–3 | 20–100 | High-resistivity soils | Low | Low |
| Sacrificial (Aluminum) | Aluminum-zinc-indium | 5–10 | 10–40 | Seawater, brackish | High | Low |
| ICCP (MMO Titanium) | Ru-Ir or Ir-Ta coated titanium | 20–50+ | Up to 1,200 | All (soils, water, sea) | Very High | Moderate |
| ICCP (High-Silicon Iron) | Silicon-chromium-iron | 15–30 | 100–500 | Soils, freshwater | High | Moderate |
| ICCP (Graphite) | Impregnated graphite | 10–20 | 50–200 | Soils, brackish | Moderate | High |
This table illustrates MMO titanium’s superiority in versatility and longevity, as supported by industry standards.
Ti Time Company: A Trusted Supplier of Custom Cathodic Protection Anodes
Headquartered in Shaanxi’s Titanium Valley, Ti Time Company has over 15 years of experience in titanium-based anodes, establishing itself as an authoritative supplier for cathodic protection solutions. Specializing in MMO-coated titanium anodes, Ti Time offers ruthenium-iridium for saline environments and iridium-tantalum for freshwater/soils, ensuring optimal performance across media.
Their custom manufacturing capabilities include tubular, ribbon, mesh, and disk forms, with precious metal oxide coatings that provide lightweight design, high strength, superior conductivity, strong oxidation/corrosion resistance, and energy efficiency. Ti Time’s anodes are deployed in pipelines, tanks, offshore structures, and more, with proven success in extending asset life while minimizing environmental impact.
Credibility stems from ISO 9001 certification, third-party testing (e.g., NACE-compliant), and a track record of global exports. Client testimonials highlight rapid prototyping, low MOQ, and technical support, underscoring Ti Time’s trustworthiness.
Expert Q&A: Addressing Common Queries on Cathodic Protection Anodes
Drawing from Ti Time’s engineering insights:
- What distinguishes Ti Time as a leading cathodic protection anode supplier? With 15+ years in Titanium Valley, Ti Time delivers custom MMO titanium anodes with Ru-Ir/Ir-Ta coatings, backed by ISO certification and NACE testing. Their focus on energy-saving, long-life designs sets them apart.
- How do MMO anodes from Ti Time enhance ICCP systems? Offering >90% efficiency and <1 mg/A-year consumption, Ti Time’s anodes provide uniform current distribution in soils/seawater, extending protection to 50+ years for pipelines and platforms.
- What customization does Ti Time offer for cathodic protection? Full bespoke services: anode shapes, coating types (Ru-Ir for sea, Ir-Ta for soil), and integration with rectifiers—tailored to resistivity, temperature, and structure geometry.
- How does Ti Time ensure product credibility? Through rigorous QC, third-party audits, and warranties, with anodes meeting ASTM B265 and NACE TM0108. Global case studies confirm reliability in harsh conditions.
- What innovations is Ti Time pursuing in corrosion protection? Advanced nano-coatings for reduced precious metal use and hybrid systems integrating renewables, aligning with ESG goals for sustainable infrastructure.
Ti Time Company invites partnerships to advance cathodic protection—contact them for custom solutions that protect your assets effectively.
