In industries where temperatures soar beyond 1,000°C, standard metals fail. This is where titanium zirconium molybdenum (commonly known as TZM alloy) becomes indispensable. As a premier supplier, Ti Time Company specializes in the customized manufacturing of this high-performance refractory alloy.
Whether you are designing aerospace nozzles or vacuum furnace components, understanding the capabilities of titanium zirconium molybdenum is critical. At Ti Time, we bridge the gap between complex metallurgy and practical application, delivering ISO9001-certified materials to the US, Germany, Japan, and South Korea.
II. What is Titanium Zirconium Molybdenum (TZM)?
Titanium zirconium molybdenum is not a titanium alloy; it is a molybdenum-based superalloy. Its typical composition consists of roughly 0.5% Titanium, 0.08% Zirconium, and 0.02% Carbon, with the balance being Molybdenum.
Why add these elements? The small additions of Titanium and Zirconium form extremely stable carbides (TiC and ZrC). These carbides pin the grain boundaries of the molybdenum matrix, preventing grain growth at high temperatures.
Key Advantages Over Pure Molybdenum:
Higher Recrystallization Temperature: While pure Mo recrystallizes around 1,100°C, titanium zirconium molybdenum remains stable up to 1,300°C or higher.
Superior Creep Resistance: It resists deformation under load at extreme heat much better than pure Mo.
High Strength: TZM offers roughly twice the strength of pure molybdenum at temperatures above 1,000°C.
III. Applications of Titanium Zirconium Molybdenum in Industry
Because of its high melting point (~2,623°C) and structural stability, TZM is the material of choice for the most demanding thermal environments. Ti Time Company supplies this alloy for:
Aerospace & Defense: Rocket nozzles, nose cones, and structural components that must withstand the thermal shock of re-entry or propulsion.
High-Temperature Furnaces: We manufacture titanium zirconium molybdenum heating elements, heat shields, and sintering trays that maintain their shape over thousands of thermal cycles.
Die Casting: TZM is used for hot runner nozzles and casting molds for aluminum and brass because it resists erosion from molten metals.
IV. Ti Time Company: Your Expert Partner for TZM
Sourcing refractory metals requires a partner with deep metallurgical expertise. Ti Time Company (Est. 2016) is a leading manufacturer dedicated to solving your high-temperature challenges.
Customized Manufacturing: We don’t just sell standard rods. We offer CNC machining, drilling, and turning of TZM to your exact prints.
Quality Assurance: Our TZM products meet ASTM B386 (Plate/Sheet) and ASTM B387 (Rod/Bar) standards. Every shipment includes a comprehensive Material Test Report (MTR).
Global Logistics: We have a robust export network, ensuring that your titanium zirconium molybdenum arrives safely and on time, whether you are in Hamburg, Tokyo, or California.
V. FAQ: Expert Insights on Titanium Zirconium Molybdenum
Q1: How does TZM compare to pure Molybdenum in terms of machining? A: Titanium zirconium molybdenum is harder and more abrasive than pure molybdenum due to the carbide particles. It requires rigid tooling and specific cutting speeds. Ti Time Company offers pre-machined parts to save you the hassle of processing this difficult material.
Q2: Can TZM be used in air at high temperatures? A: No. Like pure molybdenum, TZM oxidizes rapidly in air above 400°C. It is best used in vacuum, inert gas (Argon/Helium), or reducing atmospheres. Protective coatings are required for use in oxygen-rich environments.

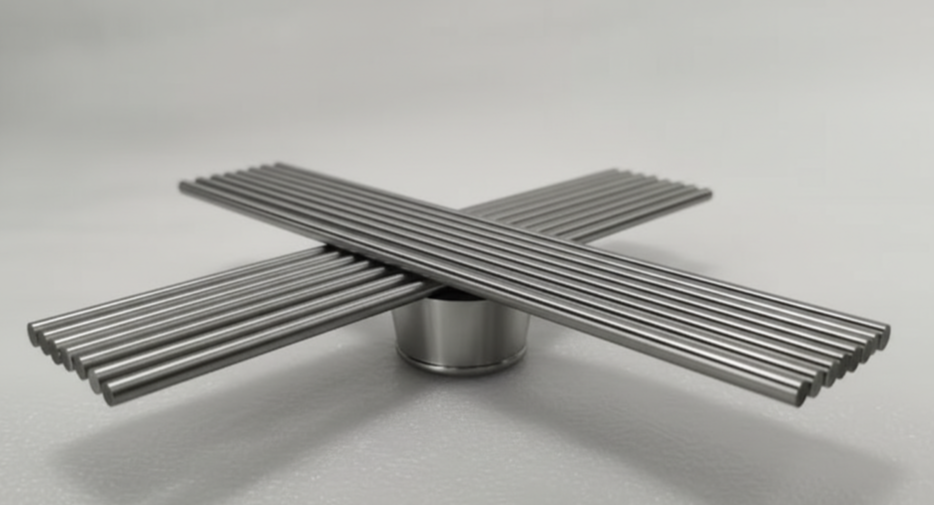

Q3: What forms of titanium zirconium molybdenum does Ti Time supply? A: We supply TZM in rods, sheets, plates, wires, and custom-machined components. We can also provide forged blocks for larger structural parts.
Q4: Is TZM suitable for welding? A: Yes, titanium zirconium molybdenum generally has better weldability than pure molybdenum. However, it requires precise control (electron beam or TIG in a controlled atmosphere) to prevent embrittlement.
Q5: What is the primary benefit of the Zirconium addition? A: The Zirconium, along with Titanium, raises the recrystallization temperature and strengthens the grain boundaries. This prevents the material from becoming brittle after exposure to high heat, extending the lifespan of your components.
VI. Ti Time Company: Your Trusted Partner for Advanced Materials
Ti Time Company is a leading manufacturer and supplier specializing in titanium, tungsten, molybdenum, tantalum, niobium, zirconium, anodes, and composite materials. With decades of experience, we are known for delivering high-quality products and exceptional customer service.
Our offerings include plates, rods, tubes, foils, wires, screws, capillary tubes, targets, custom parts, forgings, and alloys. Operating under the ISO9001 quality system, our products meet ASTM, ASME, AMS, JIS, DIN, and MIL standards, and are exported to countries such as the US, Japan, Germany, and South Korea.
